口罩机

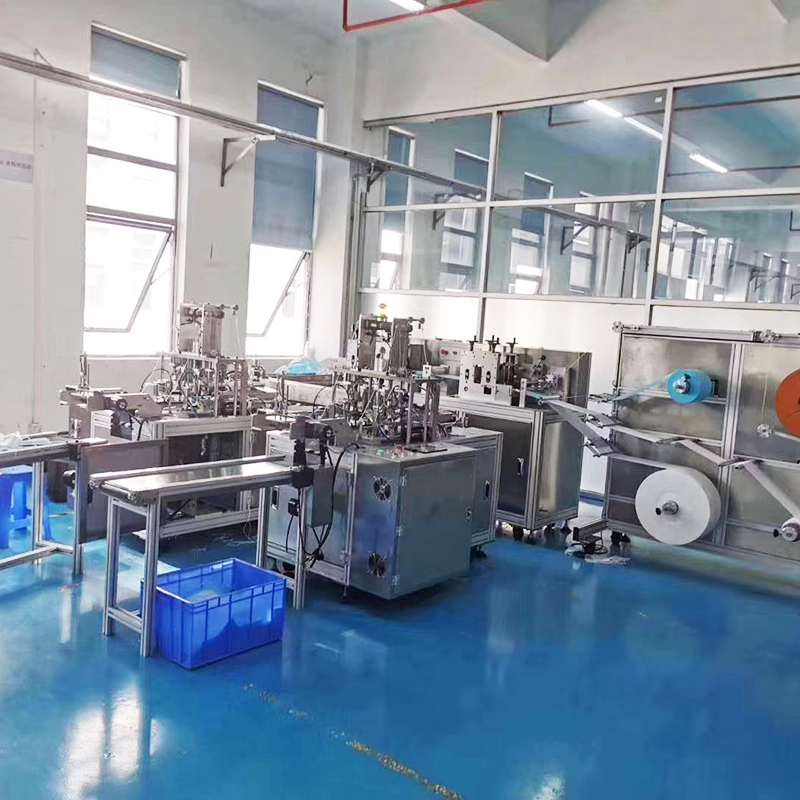

本机主要用于平面式口罩自动成型：整卷布料放卷后经过滚轮驱动，布料通 过自动折边、包边；鼻梁条整卷牵引开卷，定长裁切后导入至包边布料中，双边 通过超声焊接至封口，再经过超声侧向封口，通过切刀裁切成型；通过流水线将 口罩输送至两个口罩耳带熔接工位，通过超声焊接最终口罩成型；当口罩制成后， 通过流水线输送至平带线收集。
This machine is mainly used for automatic forming of flat face mask: the whole roll of cloth is driven by roller after unwinding, and the cloth is folded and wrapped automatically; the nose beam is pulled and uncoiled by the whole roll, cut to a fixed length and then imported into the wrapped cloth, and the two sides are welded to the seal by ultrasonic welding, and then sealed laterally by ultrasonic, and then cut and formed by cutter; the cloth is wrapped by assembly line The mask is delivered to two mask ear belt welding stations, and finally formed by ultrasonic welding; when the mask is made, it is delivered to the flat belt line through the assembly line for collection.

（此图仅供参考，设备以实物为准）

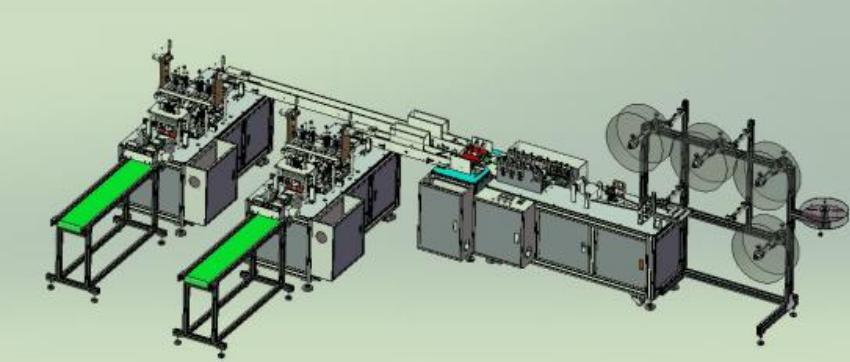

equipment diagram (this drawing is for reference only, and the equipment shall be subject to the real object)

(1)设备尺寸：6800mm(L)×3800mm(W)×2000mm(H)；
equipment size: 6800mm (L) × 3800mm (W) × 2000mm (H);
(2)外观颜色：无特殊说明时按照工厂标准；
appearance color: according to the factory standard if there is no special instructions;
(3)设备重量：≤4500kg，地面承重≤500KG/m2；
equipment weight: ≤ 4500kg, ground bearing capacity ≤ 500kg / m2;
(4)工作电源：220V，50HZ，额定功率约10KW；
working power supply: 220V, 50Hz, rated power: 10kW;
(5)压缩空气：0.5～0.7MPa，使用流量约300L/min；
compressed air: 0.5-0.7mpa, flow rate: 300L / min;
(6)使用环境：温度10～35℃、湿度5-35%HR，无可燃性、腐蚀性气体，无粉尘（洁净度不低于10万级）
operating environment: temperature 10-35 ℃, humidity 5-35% HR, no combustible, corrosive gas, no dust (cleanliness no less than 100000).
(7)操作人员：1人
Operator: 1

序号 Serial number	部件名称 Part name	数量 Quantity	备注 remarks

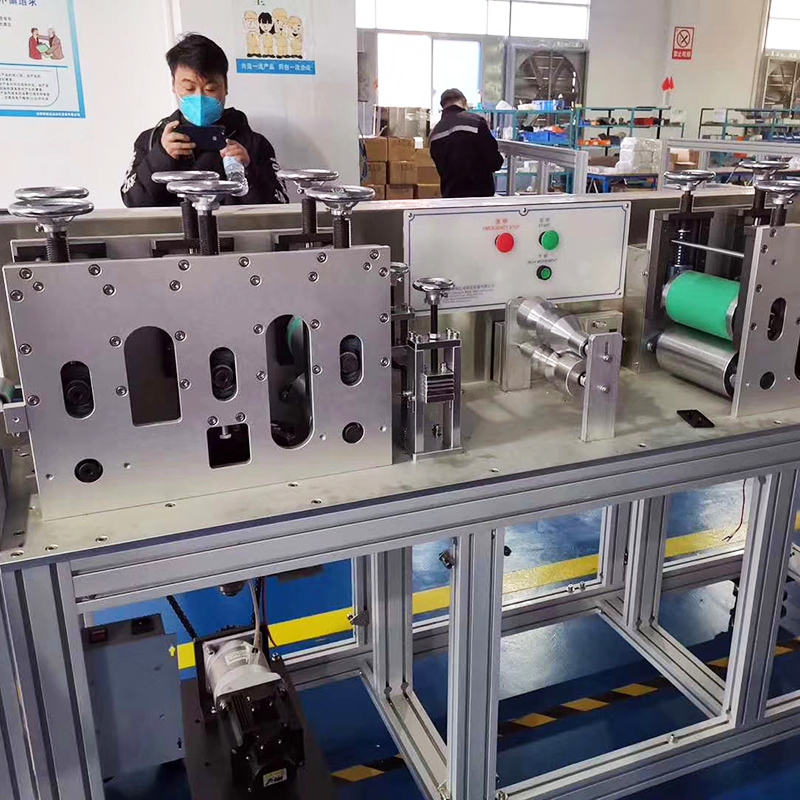

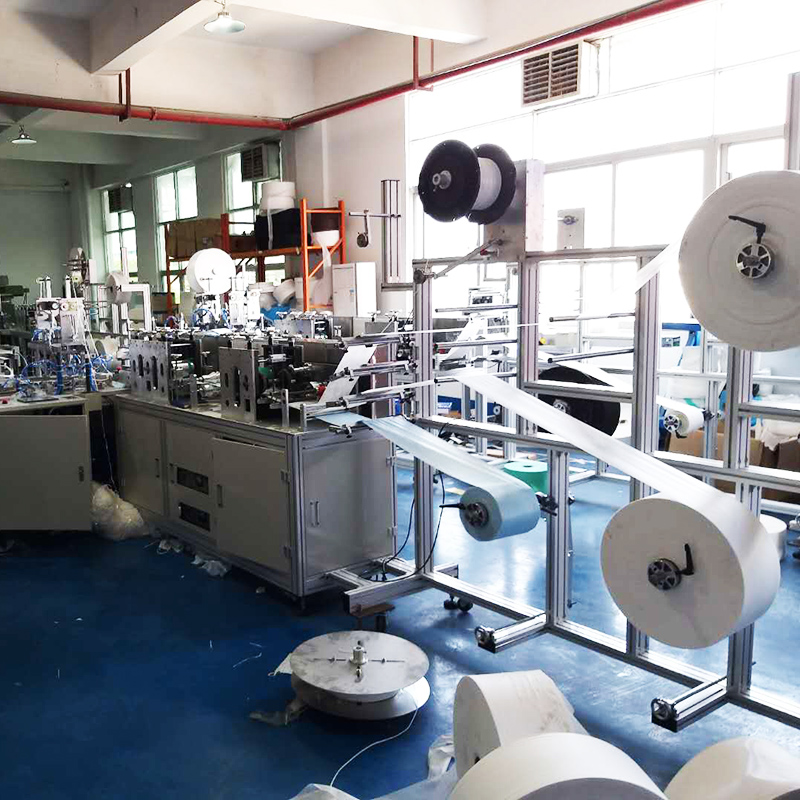

1	滤水布/过滤棉/吸水层放卷机构 Filter cloth / filter cotton / water absorption layer unwinding mechanism	3套 3sets
2	鼻梁条放卷机构 Nose strip unwinding mechanism	1套 1sets
3	鼻梁条校直机构 Bridge straightening mechanism	1套 1 sets	宽度 3-7mm Width 3-7mm
4	鼻梁条驱动、裁切机构 Driving and cutting mechanism of nose beam	1套 1 sets	宽度 3-7mm Width 3-7mm
5	布料折边机构 Fabric folding mechanism	1套 1 sets

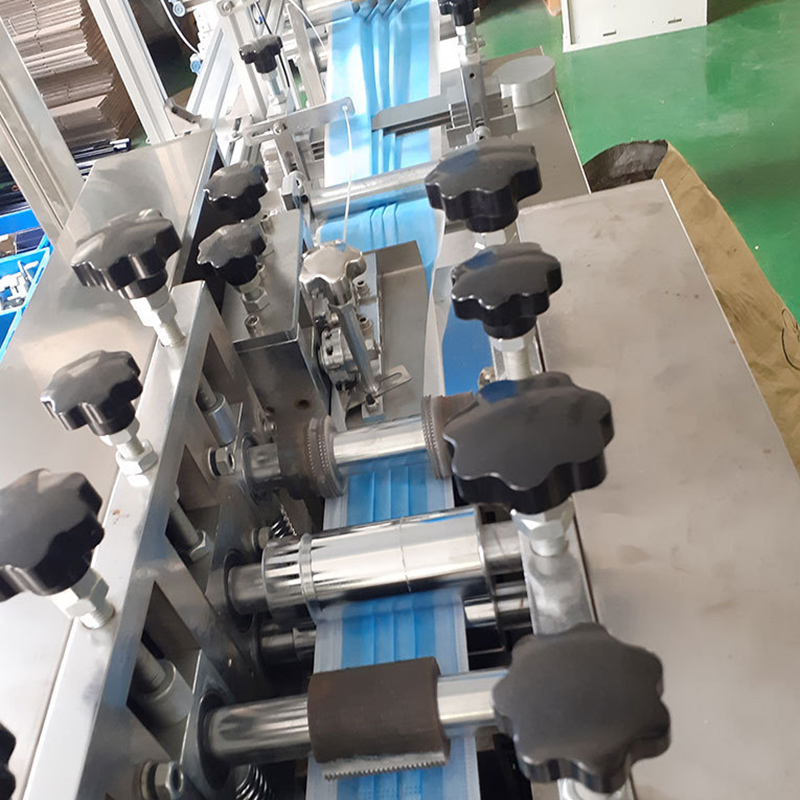

6	滚焊封边机构 Rolling welding edge sealing mechanism	2套 2 sets	双边 bilateral
7	布料驱动机构 Cloth driving mechanism	1套 1 sets
8	布料扇折机构 Fabric folding mechanism	1套 1 sets
9	滚焊侧缝机构 Roll welding side seam mechanism	2套 2 sets
10	滚封机构 Rolling mechanism	1套 1 sets
11	转运流水线 Transfer line	2条 2article
12	分流机构 Shunt mechanism	2套 2 sets

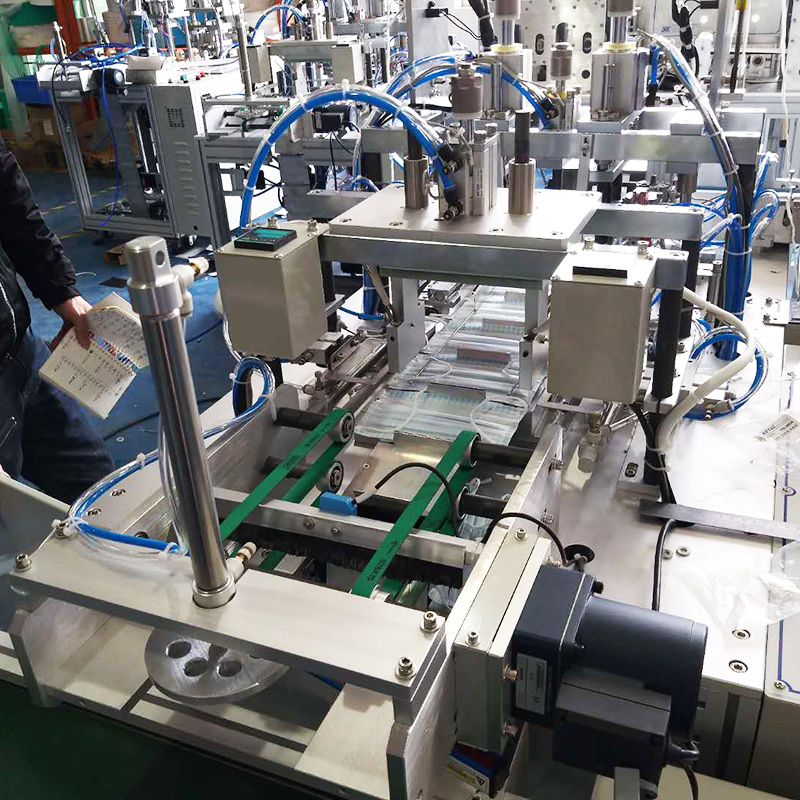

13	耳带焊机机构 Ear band welding machine mechanism	2套 2 sets
14	下料流水线 Blanking line	2条 2article
15	操作系统 operating system	1套 1 sets
16	操作面板 operation panel	1套 1 sets

applicable incoming specifications

项目 project	挂轴数量 Number of hanging axle	宽度（mm） Width (mm)	卷料外径（mm） Outer diameter of coil (mm)	料筒内径 （mm） Inner diameter of barrel (mm)	重量 weight
布料 cloth	3	170-200	Φ600	Φ76.2	Max 15kg
鼻梁条 Nose bar	1	3-7	Φ400	Φ76.2	Max 25kg
耳带 Auricular band	袋 4 bags	3	--	--	--

production product specification:
标准型：175*95mm
Standard Type: 175 * 95mm
